Guru Nanak Engg. Works (Regd.)

Slotting Machine Manufacturer in Batala, Punjab, Find here Slotting Machine dealer, suppliers, and exporters in India. just contact

SPECIFICATIONS	SIZES	SIZES	SIZES	SIZES	SIZES	SIZES	SIZES	SIZES
Maximum Length of Stroke	8”	10”	12”(L)	12”(H)	14”	16”	18”	20”
Length of Ram	20”	30”	30”	40”	40”	42”	42”	52”
Width of Ram	6”	8”	8”	9”	9”	9”	9½ “	12”
Length of Ram Bearing	14”	20”	22”	26”	26”	26”	26”	36”
No. of Speeds to Ram by Gear Box	2	2	4”	4”	4	4	4	4
Maximum diameter of work Admitted	20”	32”	36”	48”	48”	48”	48”	72”
Maximum Height of work Admitted	7”	9”	11”	15”	18”	20”	22”	24”
Longitudinal traverse of table	9”	15”	18”	24”	24”	24”	24”	36”
Transverse traverse of table	10”	12”	15”	18”	18”	18”	18”	24”
Diameter of Circular table	12”	15”	18”	24”	24”	24”	24”	42”
Horse Power required	1 H.P.	2 H.P.	3 H.P.	5 H.P.	5 H.P.	7.5 H.P.	7.5 H.P.
Approx. Weight of Casting	10 Qnt.	15 Qnt.	18 Qnt.	30 Qnt.	34 Qnt.	44 Qnt.	50 Qnt.	60 Qnt.
Dividing arrangements	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes

Yes I'm Interested

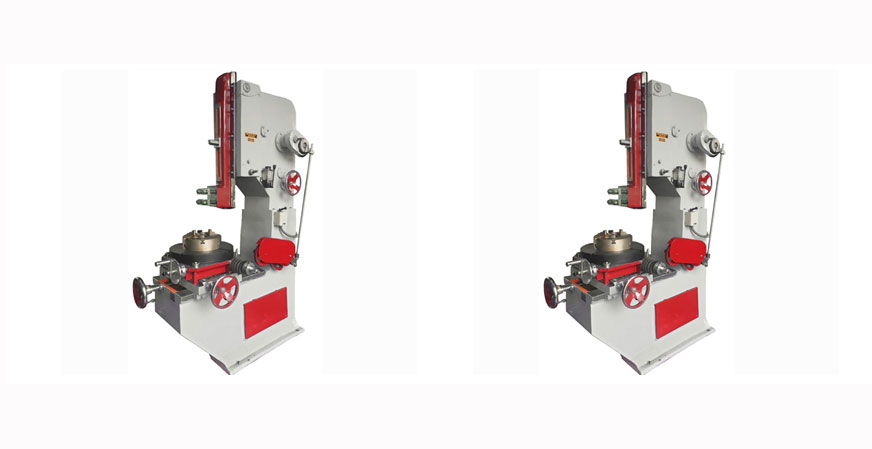

Slotting Machine
